Chilled Iron Grits
Chilled Iron Grits
Chilled Iron Grits
Chilled Iron Grits

Chilled Iron Grits

Availability : In Stock
Price : INR 40 /kg - 70 /kg
  Place Order
Specification
Material :
Chilled Iron Grit
Application :
Blasting, Peening, Cleaning
Grain shape :
Angular
Hardness :
≥ 56 HRC
View More
View Less
Leading Supplier & Exporter
Leading Supplier & Exporter
Trustseal Verified
Trustseal Verified
ISO Certified
ISO Certified
Manufacturer
Manufacturer
Applications
Additional Information
Watch Video
Product Description
Payment Terms
Applications
  • Used for cleaning steel fabrications
  • Used by Engineering Industry
  • Used for cleaning steel fabrications
  • Used by Engineering Industry
Color :
Black
Country :
India
Packaging Type :
Plastic Bag
Packaging Size :
50 Kg
Minimum Order Quantity :
100 Kg
Brand :
Abrasive Shots

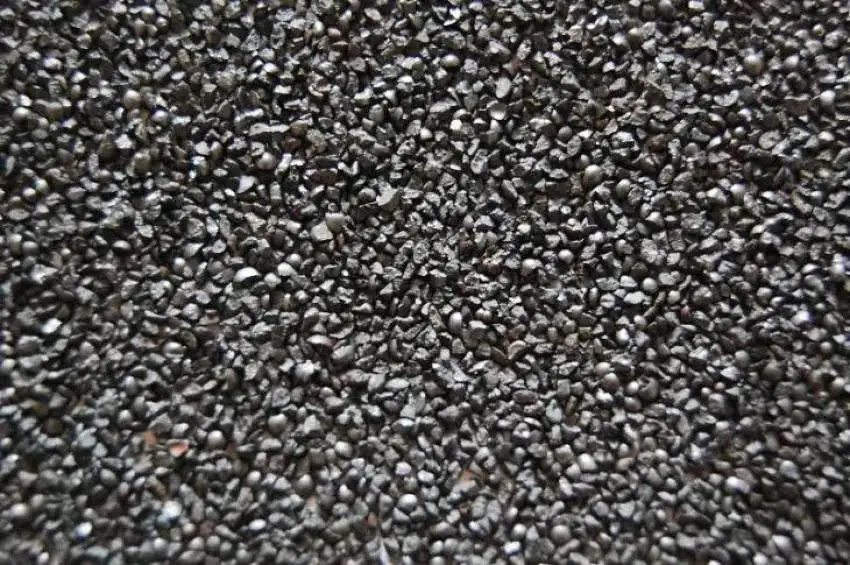

Chilled iron grit is a strong abrasive that can be used for etching but is less impact resistant. During the blasting process, cold iron splits at an angle, resulting in a persistent mixture of sharp grit that may roughen up the toughest surfaces and clean them rapidly. It's fine for cleaning and edging in blast rooms, but it shouldn't be used in wheel blast machines since it quickly wears out the machine's parts.

Chilled Iron Grits (C.I. Grits) are angular grits with a white structure formed from cast iron scrap or pig iron with a carbon content of 1.7 to 3.5 percent and hardness of more than 750 HV / 63 RC. These are commonly used for foundry cleaning, sand removal in castings, air blast applications, removing old coatings, cleaning of castings and metallurgical materials, stone blasting, and stone cutting. These can also be used to etch structural steel and components before applying paint, metal spray, or plastics. Chilled iron grit is suitable for compressed air blasting in blast rooms with proper recycling and dust-extraction equipment.

Because of its high carbide content, chilled iron grit is not burn-sensitive and has a high specific grinding energy. Because its hardness is around 50 HRc, the maximum surface roughness generated on the machine is 0.5 m, a common structural bonding method is used, which is normally between 23 and 27 percent of the wheel volume.

The grain content is typically 50 percent, and wheel speeds can reach 120 meters per second. To conclude, a cleaning station includes a trash screen, a storage sand blasting machine, a metering device for supplying a controlled flow of abrasive, and an air-wash classifier for removing dust and particles.

Specifications of Chilled Iron Grit

Packaging Size 50 Kg
Country of Origin Made in India
Mesh Size 16-80 Mesh
Material Iron
Density 7.0 g/cm3
Packaging Type Plastic Bag
Minimum Order Quantity 500 Kg



Chemical Composition

C 2.8 – 3.4 %
Mn 0.6 – 1.0 %
Si 0.8 – 1.20 %
P 0.15 – 0.45 %
S 0.25 – 0.50 %



Sizes Available

Grades

Grades

Average Grain Size in mm

G 10

G 80

2.0-2.8

G 9

G 66

1.7-2.4

G 8

G 55

1.4-2.0

G 7

G 47

1.2-1.7

G 6

G 39

1.0-1.4

G 5

G 34

0.8-1.2

G 4

G 24

0.6-1.0

G 3

G 17

0.4-0.8

G 2

G 12

0.3-0.6

G 1

G 7

0.2-0.4

Features of Chilled Iron Grit

  • Faster cleaning action
  • Similar abilities in contrast to garnet sand
  • make use of in surface preparation for enameling, electroplating, painting
  • Also, used as granite sawing and like granite block surface treatment and also for shot blasting leaning of forgings, castings, and rolled steel before and after heat treatment.

chilled iron grit

Benefits of Chilled Iron Grit

  • Rapid Cleaning
  • High hardness level
  • Low dust level
  • Low cost and low maintenance
  • Recyclable in shot blasting machine
  • Stout construction and reliable

Applications of Chilled Iron Grit

  • Used for cleaning steel fabrications
  • Used by Engineering Industry

Chilled Iron Grit Supplier in India

Abrasives Shots are the leading chilled iron grit supplier in India at an affordable price. We are also the manufacturer and exporter of abrasives such as glass beads, cut wire shot, copper slag, steel shot, aluminum oxide, and garnet sand. Our large range of products and is checked on various parameters, such as density, physical and chemical properties, microstructure, hardness, durability.

In addition to this, we are highly committed to following fair business practices that have further enabled us to attain the maximum trust and satisfaction of our clients.

To enable us to quote for your requirement, kindly give us the following info –

1.      Particle size required (You may choose from above or give your own range).

2.      Packing required.

3.      Quantity required with a delivery schedule.

4.      Destination port.

5.      Payment terms.

6.      Discharge rate at the destination, if in break-bulk.

7.      Any other point which may impact the quote.

Additional Information

Delivery Time Minimum Delivery Time
Port Of Dispatch All Indian Port
Production Capacity 1500 mt Per Month
Packaging Details 25 kg bags on 1t pallets, 1 ton loose in a big bag
Payment Terms L/C (Letter of Credit)/T/T (Bank Transfer)/D/P/D/A

You can reach out to us by dialing +91-9119207701 or by sending us an email at abrasivesshots@gmail.com. Contact us today!
